Description
Scope of Delivery:

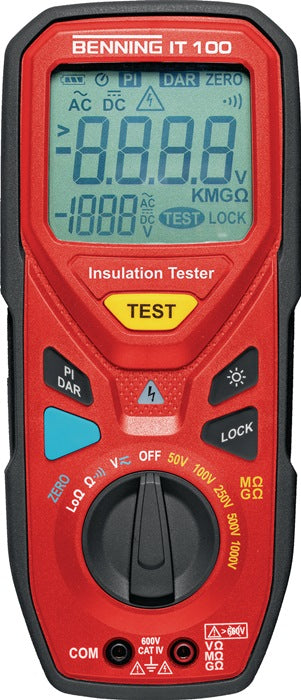

- Insulation/resistance tester IT 100 600 V
- Supplied with rubber protection frame, bag, test leads, crocodile clips, batteries (4 x type AA), spare batteries see art. no. 4000 901 811
Product Description:
for insulation and low-resistance measurements on electrical systems, devices, cables, motors and generators - 4-digit, illuminated LCD display (9,999 dots) - red LED for test/external voltage - automatic discharge of capacitive voltages - zero balancing of test leads - lock function for continuous insulation and low-resistance measurement - integrated fuse test - test lock for reverse voltage - measurement category CAT IV 600 V Measuring ranges: Low-resistance measurement up to 60 Ω, insulation resistance up to 20 GΩ (test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V) and resistance measurement with 200 mA test current (testing of protective conductor connections), polarisation index (PI), dielectric absorption rate (DAR), voltage (600 V), resistance (600 kΩ)
Technical Data:
- Width: 89mm
- Length: 206mm
- Batteries: 4 x Mignon type AA
- Low-impedance resistance: 0.01 Ω-60 Ω
- Resistance: 600 kΩ
- Insulation resistance: 300 kΩ-20 GΩ
- Voltage: 600V
- Measured value memory: false
- Height: 51mm
- Display: 9.999 digit (illuminated)Note on the disposal of batteries and rechargeable batteries
