Description

Scope of Delivery:
- 1x cross-cut towing saw KS 120 REB KAPEX

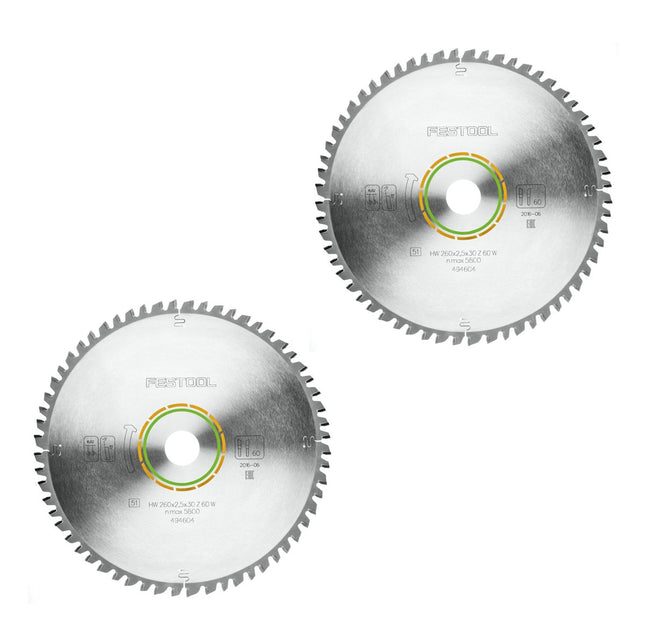

- 1x HW universal saw blade W 60
- 1x Angle clamp SM-KS

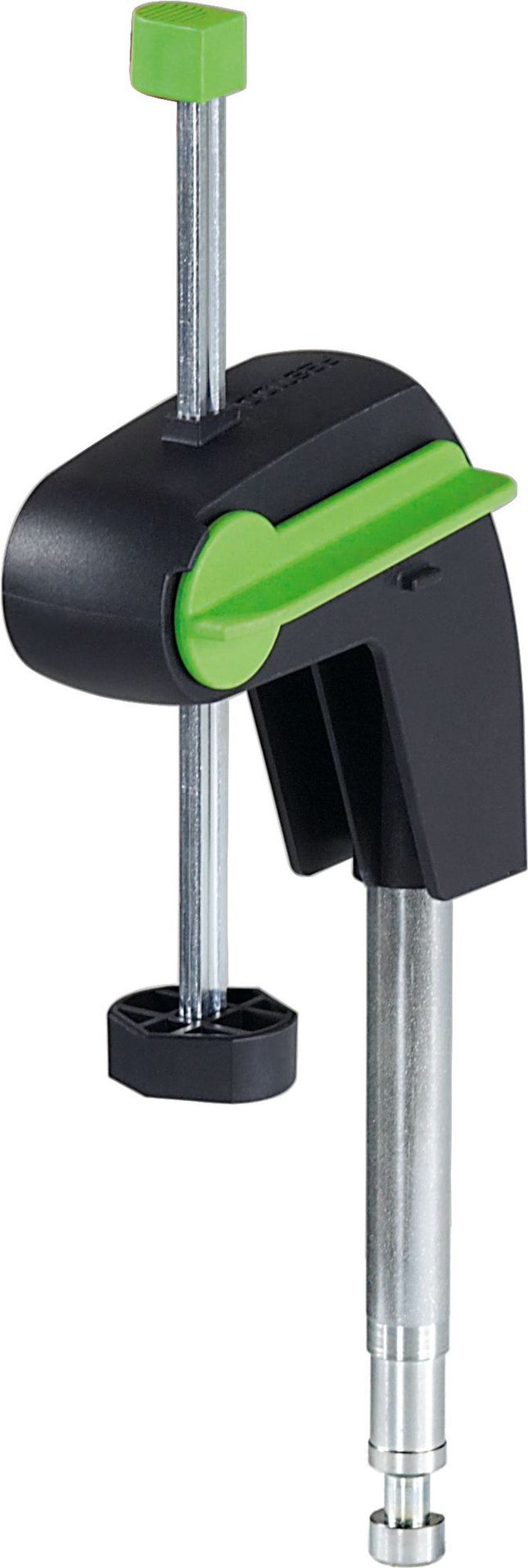

- 1x Workpiece clamp KL-KS 120
- 1x Allen key SW 6
- 1x Operating instructions

Product Description:
The KS 120 REB is the new version of the successful KS 120 EB. The popular cross-cut towing saw now has a table extension that can be pulled out far for long workpieces and a new angle support. It impresses with its impressive cutting capacity and low weight. Its compact design means that it takes up little space, while its mobility and the fact that it can be used in different locations are a major advantage. Thanks to the special cross-cut position, it can be used to cut ceiling end strips as well as cornice profiles in the original wall position. The integrated special cross-cut position enables cutting depths of up to 120 mm. The double line laser and angle bevelling ensure the most accurate results and error-free angle transfer. The double ball-bearing double column guide and the fine adjustment, which can be operated from the front for millimetre-precise adjustment of the saw blade, allow work to be carried out at the highest level. Thanks to the FastFix function, working with the right material is no problem. The quick brake for planing, sawing and routing ensures maximum safety. Furthermore, the machine is designed for material-compatible work thanks to the process-controlled power electronics " Multi Material Control " ( MMC ) with adjustable and constant speed and temperature monitoring. The CLEANTEC bayonet lock serves as a connecting element between the machine and the suction cup. The KS 120 REB also has a sophisticated anti-static function.

Technical Data:
- Idle speed: 1 400 - 3 400 min-¹
- Power consumption: 1 600 W
- Weight: 23.10 kg
- Saw blade Ø: 260.00 mm
- Cutting depth 45°/90°: 215 x 88 mm
- Cutting depth 90°/90°: 305 x 88 mm
- Cutting depth 45°/45° (right): 215 x 35 mm
- Crown profile diagonal cut at 45°/90°: 168.00 mm
- Tilt angle: 47/47 °
- Dimensions (WxDxH): 713 x 500 x 470 mm
- Cutting depth 50°/90° (left): 196 x 88 mm
- Cutting depth 60°/90° (right): 152 x 88 mm
- Cutting depth 45°/45° (left): 215 x 55 mm
- Mitre angle: 50/60°
- Special cutting depth 90°/90°: 60 x 120 mm
- Special cutting depth 45°/90° (left): 40 x 120 mm
- Special cutting depth 45°/90° (right): 20 x 120 mm
- Crown profile diagonal cut at 90°/90°: 168.00 mm
- Working height: 900.00 mm
- Dust extraction connection Ø: 27/36 mmSaws: Uncertainty (vibration) K: 1.50 m/s²
- Sawing: A-weighted sound pressure level Lp: 88.00 dB(A)
- Sawing: A-weighted sound power level Lw: 101.00 dB(A)
- Saws: Total vibration mean value ah: 2.50 m/s²
- Saws: EN 60745 series of standards: 61029-2-9
- Saws: Uncertainty (noise) K: 3.00 dB
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Hersteller: Festool
• Gewicht: 23100 g
• Antrieb: Netzbetrieb
• Länge: 713 mm
• Breite: 500 mm
• Höhe: 470 mm
• Leistung: 1600 W
• Max. Leerlaufdrehzahl: 3400 U/min
• Max. Sägeblatt-Ø: 260 mm
• Sägeblattneigung links/rechts: 47 / 47°
• Gehrungswinkel: 50/60 °
• Schnitttiefe 45°/45°: 215 x 35
• Schnitttiefe 45°/90°: 215 x 88 mm
• Schnitttiefe 60°/90°: 152 x 88 mm
• Schnitttiefe 0°/0°: 305 x 88 mm
• Sonderschnitttiefe 90°/90°: 60 x 120 mm
• Arbeitshöhe: 900 mm
• Kranzprofil Diagonalschnitt bei 45°/90°: 168 mm
• Kranzprofil Diagonalschnitt bei 90°/90°: 168 mm
• Schnitttiefe 50°/90°: 196 x 88
• Sonderschnitttiefe 45°/90°: 20 x 120
