Description

Package contents:

- 200x HECO MULTI MONTI plus F Screw Anchors, 6.0 x 80mm

Product description:

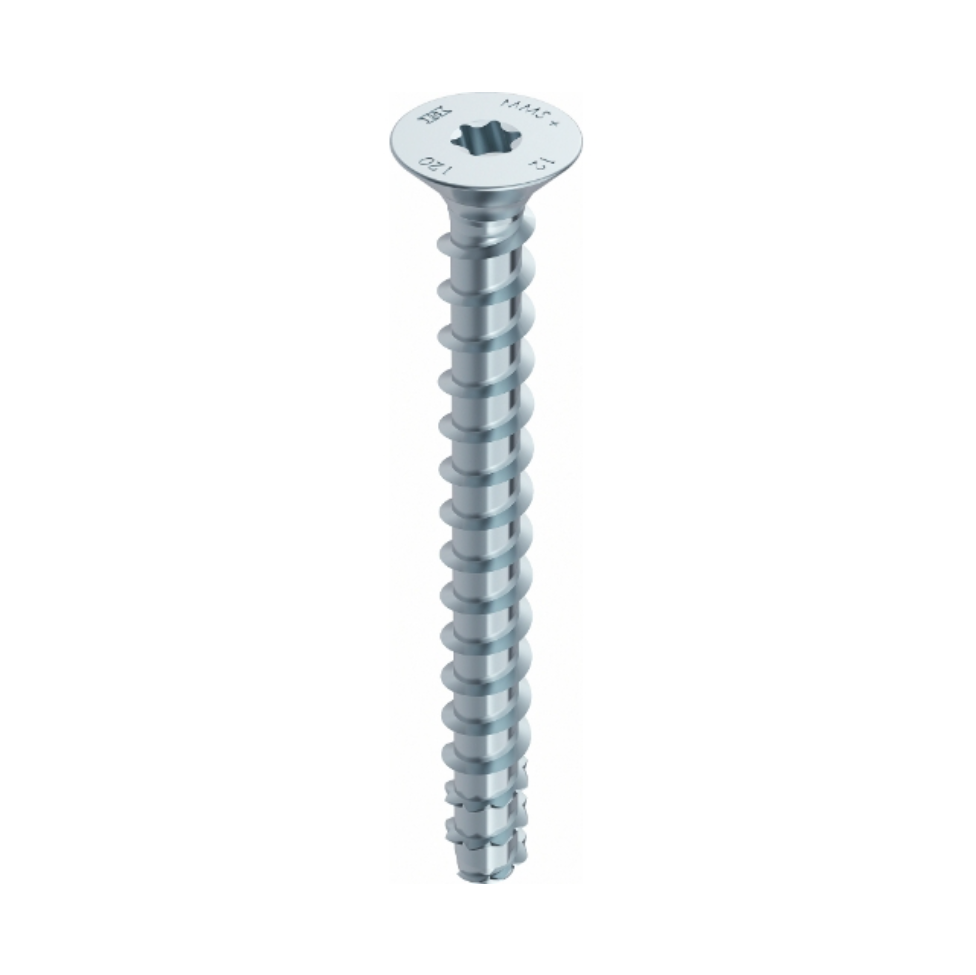

The MULTI MONTI plus screw anchor from HECO is an enhanced version of the MULTI MONTI concrete screw. Its main advantage is that it can be inserted directly into a pre-drilled hole without the need for wall plugs, and can be immediately loadable. Its functional point, with reinforced teeth, taps into the building material as it is being screwed in. This creates a positive locking connection, which is subsequently used for the anchoring. This system not only simplifies the assembly process, but also guarantees optimum safety for the user. The MULTI MONTI plus can be mounted close to the edge without a torque wrench. It can also be removed and reused.

Technical specifications:

Manufacturer: HECO
Manufacturer's number: 48501
Manufacturer's designation: MULTI MONTI plus F

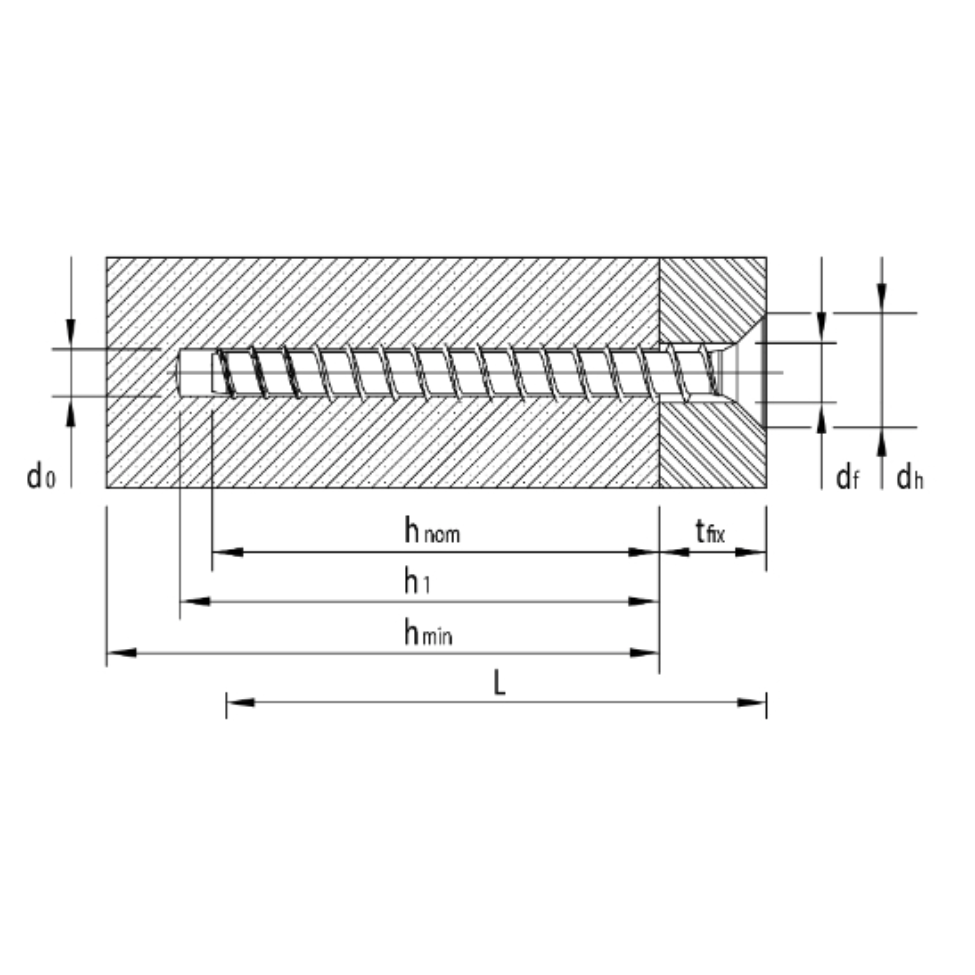

Clamping strength, tfix1: 35mm
Clamping strength, tfix2: 45mm
Drive size: T30
Drill diameter, d0: 5.0mm
Drill hole depth, h1: 50mm
Drill hole depth, h2: 40mm
Diameter of clearance hole in the fixture, df: 7mm
Embedment, hnom1: 45mm
Embedment, hnom2: 35mm
Thread length, lg: 63mm
Head diameter, dk: 11.5 mm
Recommended max. power output of the impact screw driver, Tmax1: 100Nm
Recommended max. power output of the impact screw driver, Tmax2: 75Nm
Minimal thickness of concrete member, hmin: 100mm
Min. edge distance, cmin: 30mm
Diameter, d: 6.0mm
Length, l: 80mm
Head form: Countersunk head

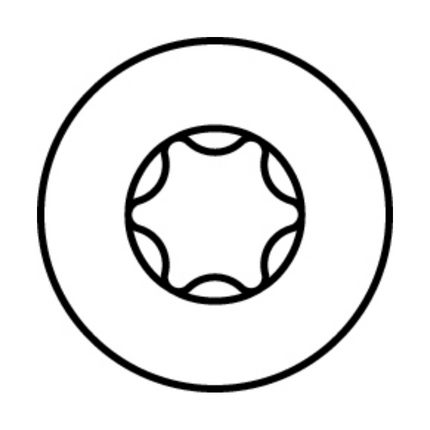

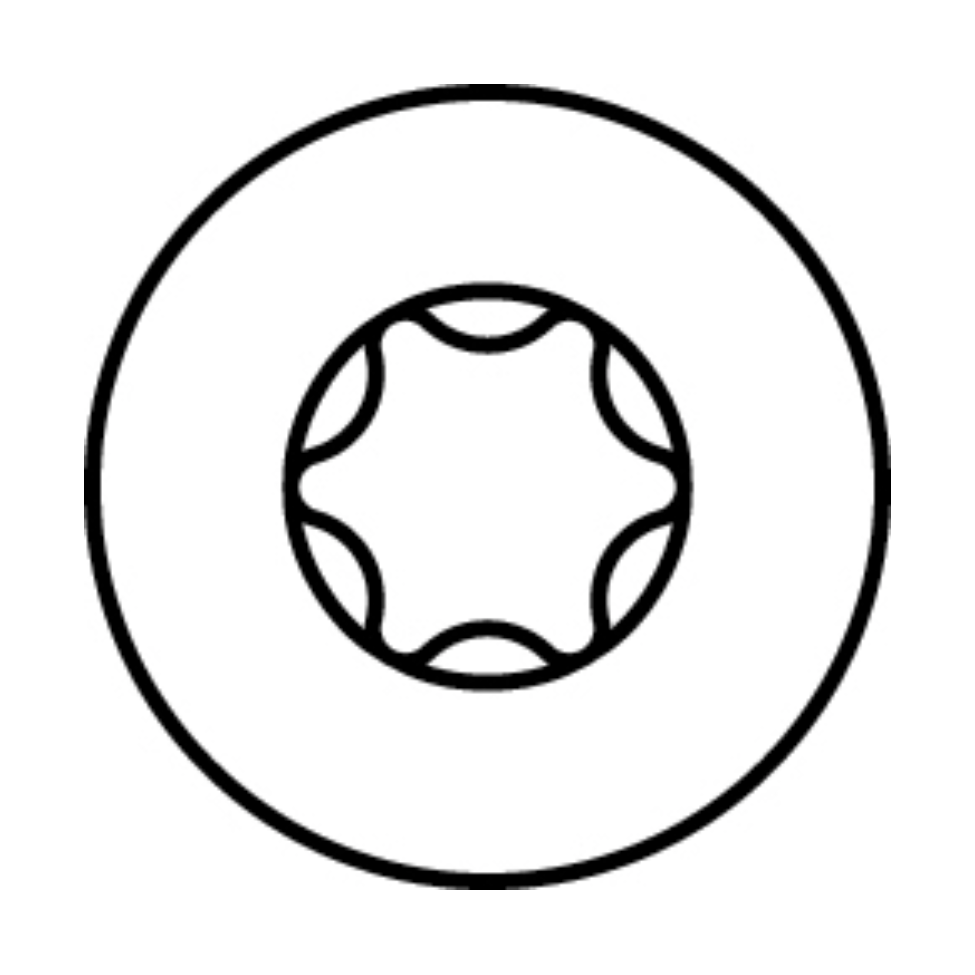

Drive: T-Drive
Material: Carbon steel
Surface: Blue zinc plated, A2K

Product form

HECO MULTI MONTI plus F Screw Anchor , 6.0 x 80mm, Concrete screws, Countersunk head, T-Drive, Blue zinc-plated, A2K, 200 pcs. (4x 48501)

SKU: 26130 EAN: 4064677024222
    CHF 67.67
    incl. VAT, plus shipping
