Description

Scope of Delivery:

- 1x Makita DJV 184 cordless pendulum action jigsaw
- 1x plastic glide shoe ( 457867-1 )
- 1x jigsaw blade B-50 wood ( B-06460 )
- without battery, without charger

Product Description:

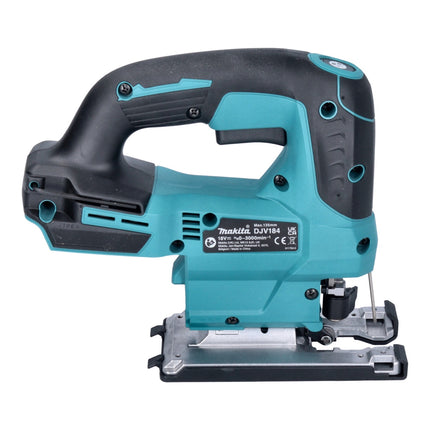

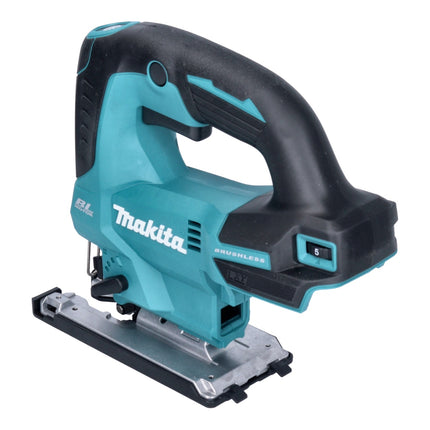

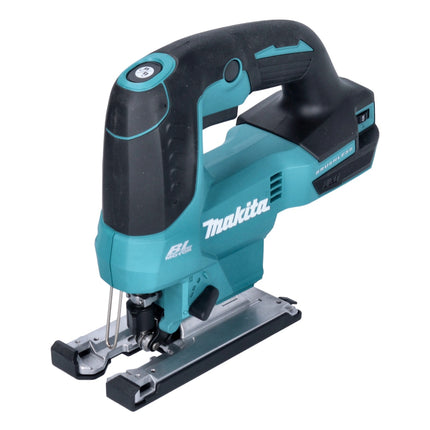

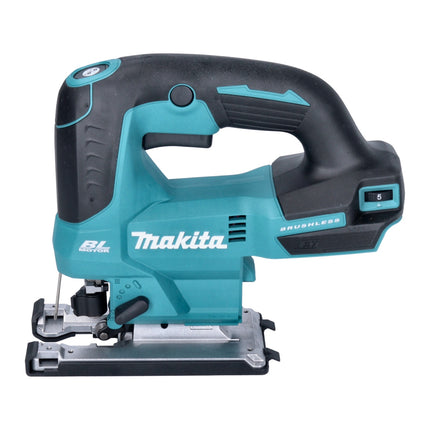

With the DJV 184, Makita offers a cordless pendulum action jigsaw which is equipped with an aluminium base plate that can be swivelled through 45°. The speed can be easily set using a sensitive switch and can be limited using a setting wheel. The cutting blade is always blown directly free by the machine's cooling air. The pendulum stroke can be set to 3 different levels plus a neutral position. The brushless motor enables a more compact design on the one hand and an increased service life due to reduced wear on the other. When cutting into the workpiece, the stroke rate increases automatically to reach the set value. The powerful double LED light ensures that you always have an optimum view of the workpiece being processed. Makita is a leading manufacturer of power tools of all kinds and is characterised above all by its high quality of workmanship and its huge 18 V ecosystem.

Technical Data:

- Manufacturer: Makita
- Manufacturer designation: DJV 184
- Battery voltage: 18 V
- Idle stroke rate: 0 - 3000 min-¹
- Lifting height: 23 mm
- Max. Cutting capacity wood 90°: 135 mm
- Cutting capacity steel: 10 mm
- Max. Cutting capacity aluminium: 20 mm
- Product weight: 2.4 kg
- Weight incl. battery (EPTA): 2.1 - 2.4 kg
- Product dimensions (L x W x H): 259 x 78 x 205 mm
- System: LXT 18V / 36V
- Suction hose connection Ø inside/outside: 23 / 28 mm
- Sound power level (LWA): 93 dB(A)
- Sound pressure level (LpA): 82 dB(A)
- K-value noise: 3 dB(A)
- Vibration sawing wood: 7.4 m/s²
- Vibration sawing metal: 5.1 m/s²
- K-value vibration: 1.5 m/s²
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Hersteller: Makita
• Gewicht: 2400 g
• Antrieb: Akku
• Spannung: 18 V
• K-Wert Vibration: 1.5 m/s²
• Länge: 259 mm
• Breite: 78 mm
• Höhe: 205 mm
• Schalldruckpegel: 82 dB
• Max. Vibration: 7.4 m/s²
• K-Wert Geräusch: 3 dB
• Schallleistungspegel: 93 dB
• Max. Leerlaufhubzahl: 3000 U/min
• Hubhöhe: 23 mm
• Max. Schnitttiefe Holz: 135 mm
• Max. Schnitttiefe Stahl: 10 mm
• Max. Schnitttiefe Aluminium: 20 mm
• Pendelhub: Ja
• Universalaufnahme: Ja
• Pendelhubstufen: 3
• Schrägstellung: - 45 / 45 °
