Description

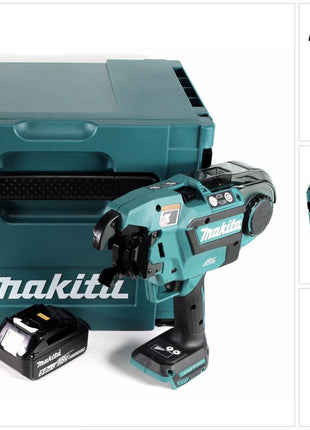

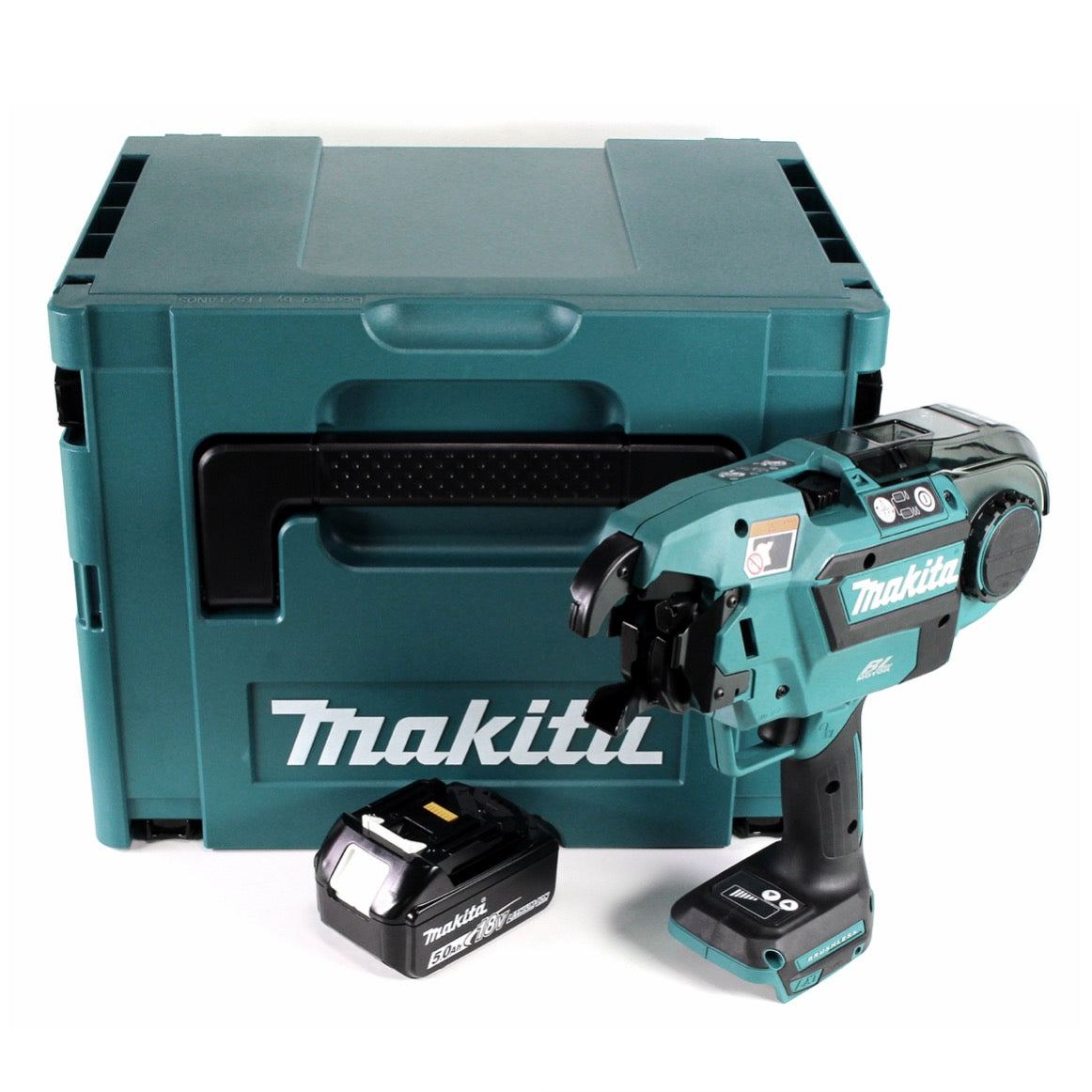

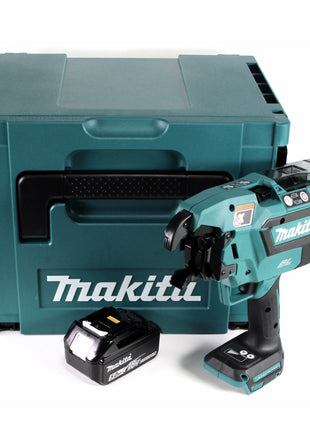

Scope of Delivery:

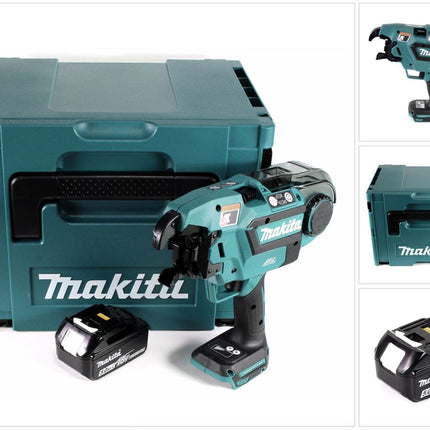

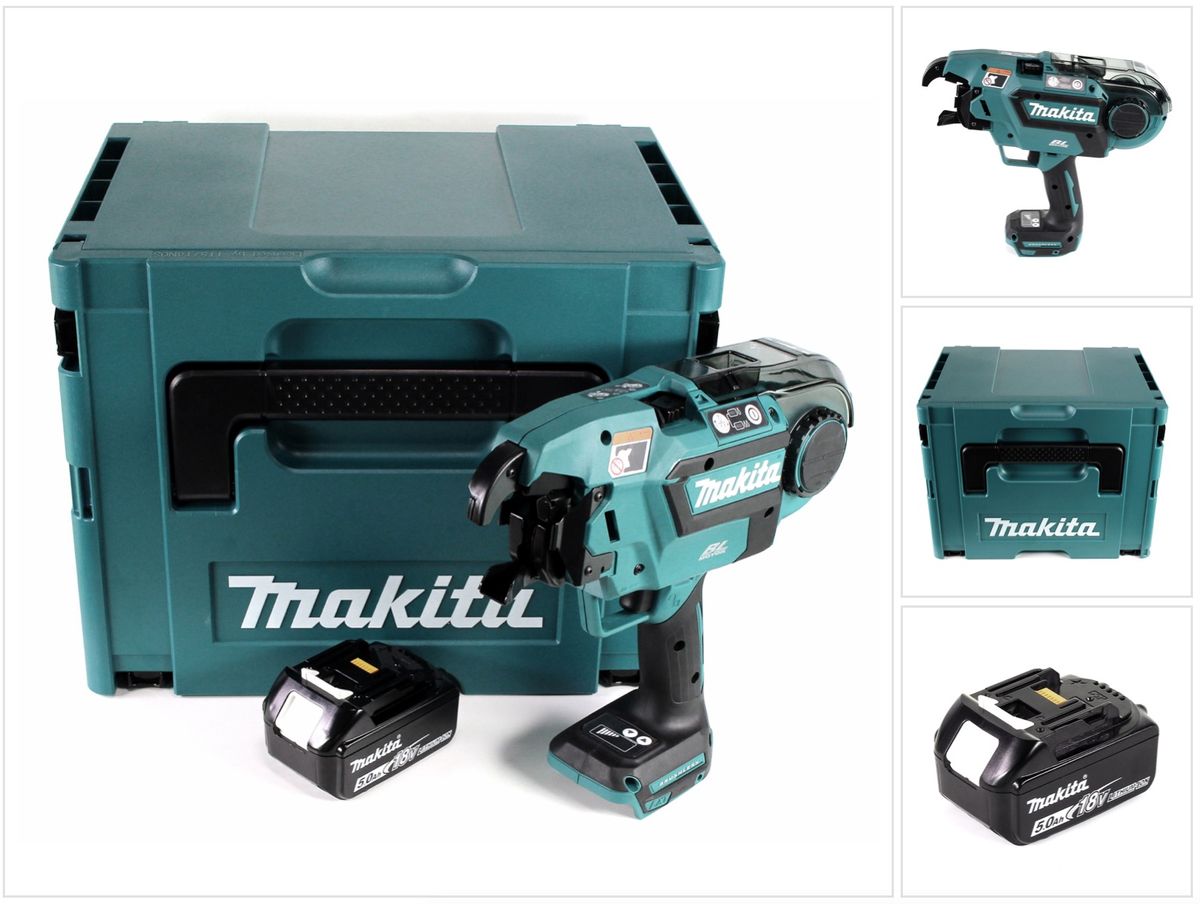

- 1x Makita DTR 180 ZJ cordless rebar connector

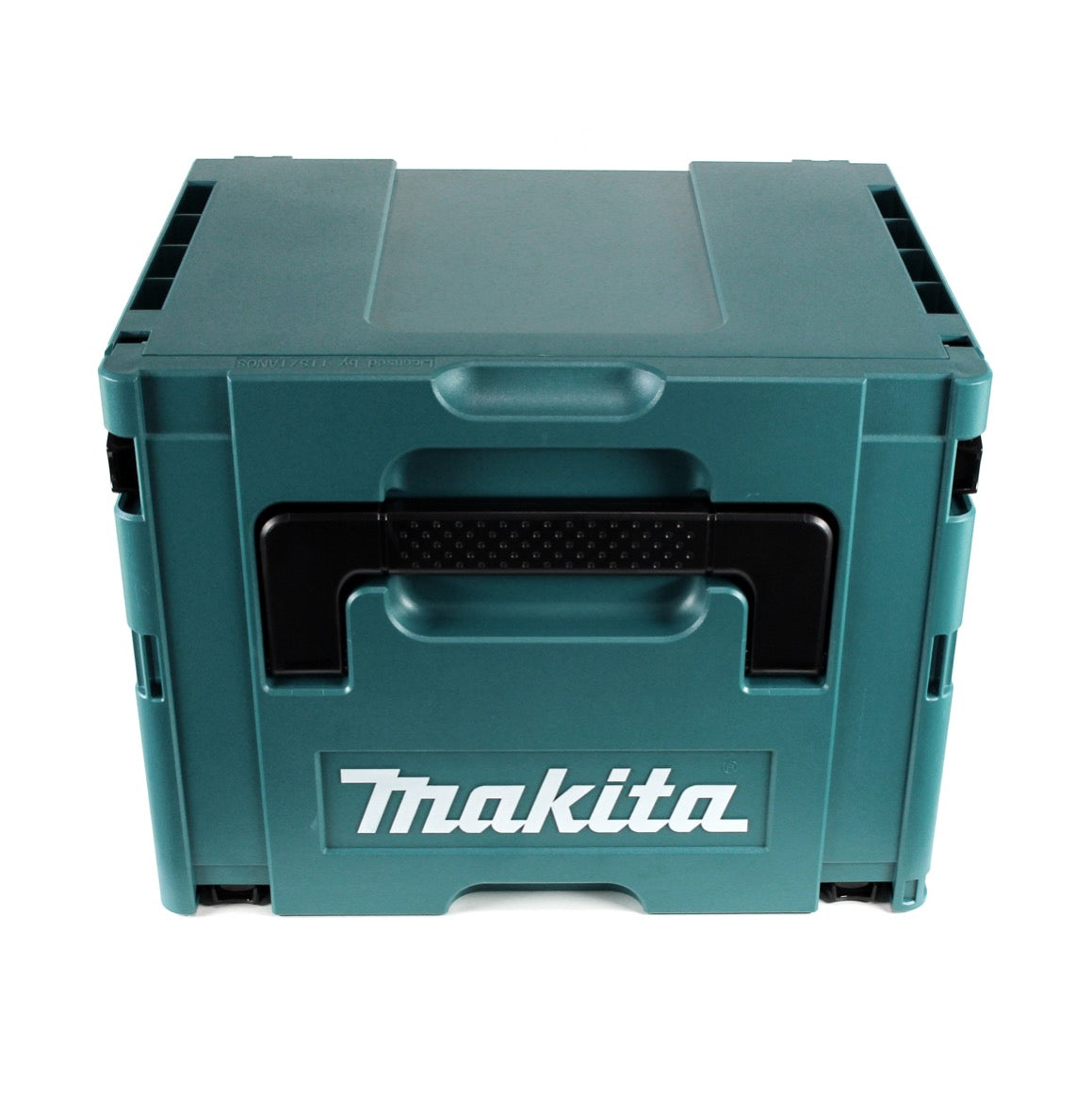

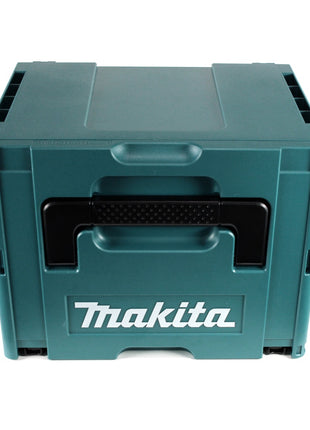

- 1x Makita Makpac 4 system case
- 1x belt attachment
- 1x operating instructions

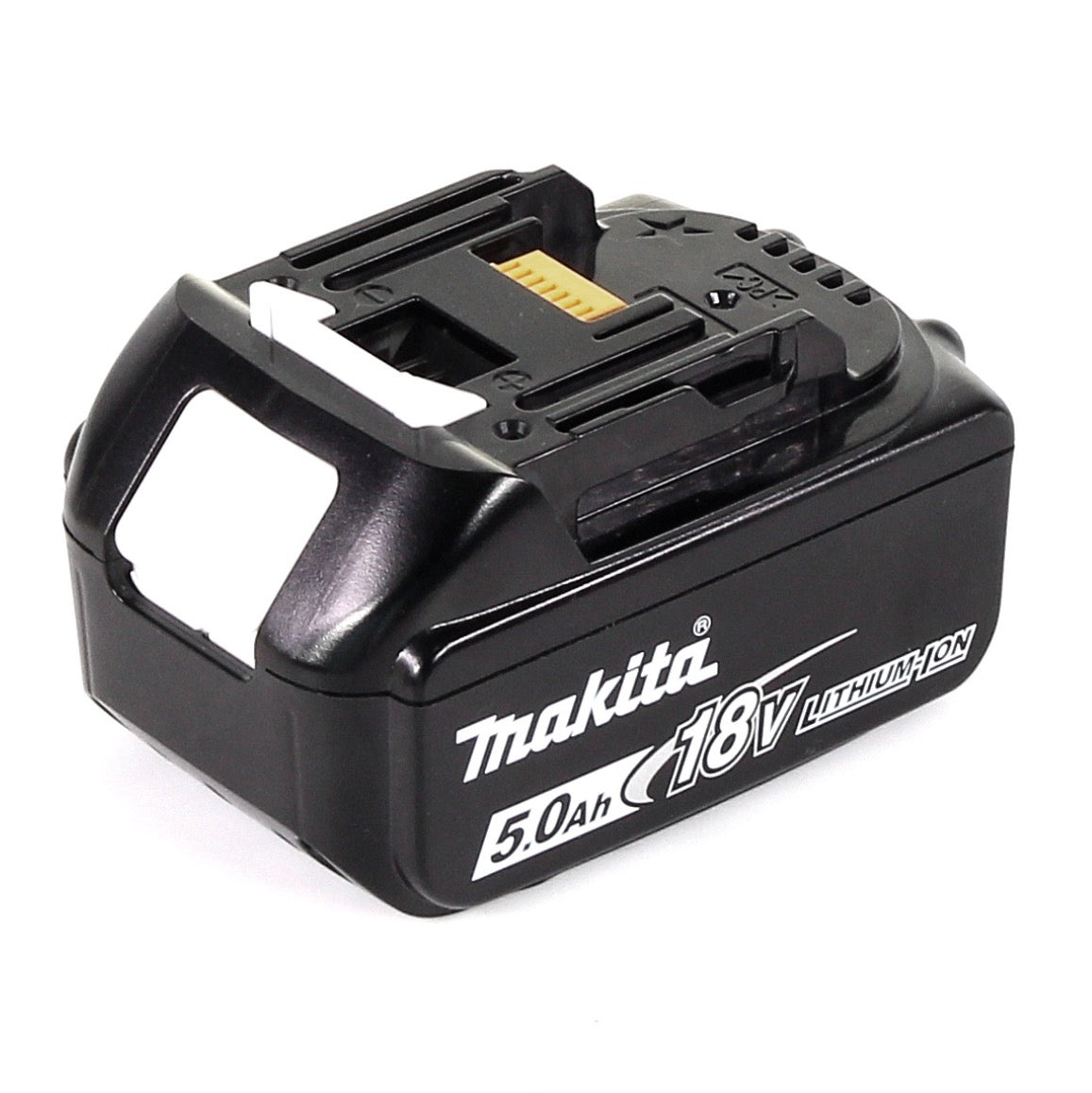

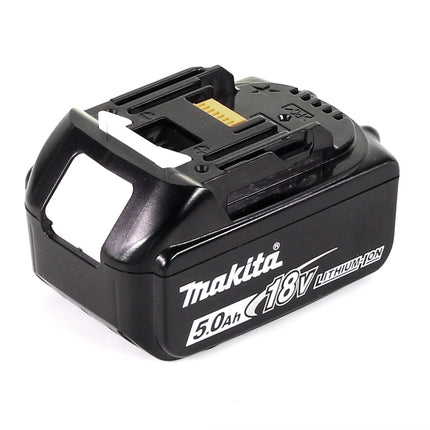

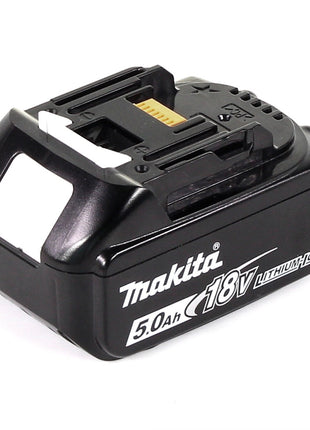

- 1x Makita BL 1850 B 18V 5,0Ah Li-Ion battery
- without charger

Product Description:

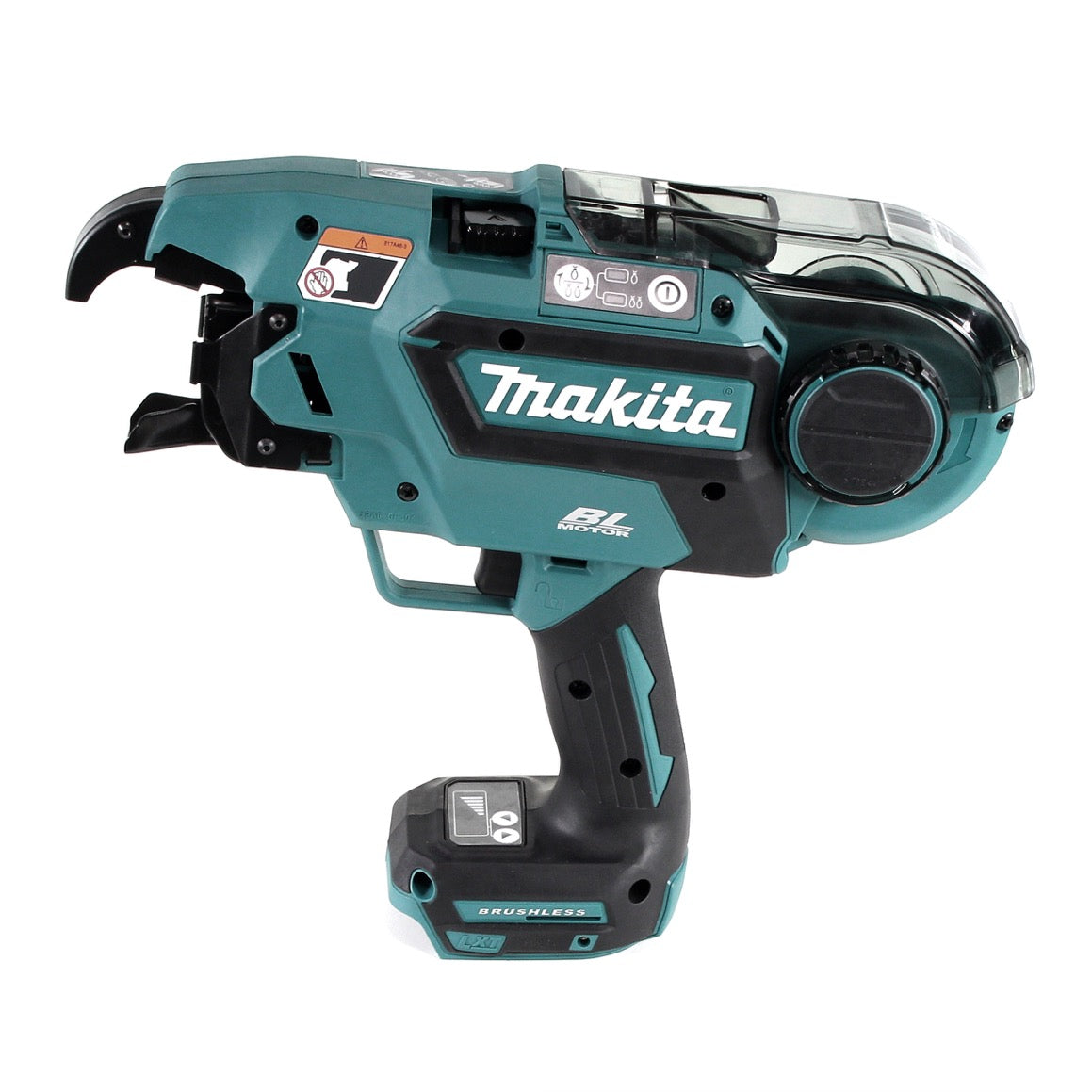

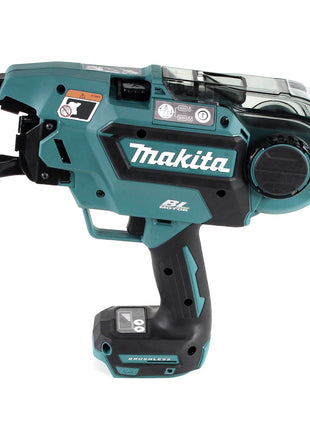

This reinforcement connector from Makita is suitable for the automatic connection of reinforcement meshes (rods). The practical one-handed operation enables precise positioning of the binding wire on the reinforcement mesh with the other hand. It is suitable for 0.8 mm ø binding wire. There is also a lockable switch for continuous operation. The strength of the twisting can be adjusted in 6 stages. The integrated XPT - Xtreme Protect Technology ensures that the device is optimally protected against dust and splash water, even under tough conditions. The brushless motor ensures greater endurance, a longer service life and the compact design of the machine.

Technical Data:
- Battery voltage: 18 V
- Binding wire ø: 0.8 mm
- Max. tyre iron: 13 mm
- Dimensions (L x W x H): 304 x 93 x 318 mm
- Weight (device in case): 4960g
- Makpac 4 dimensions: 400 x 300 x 320 mm
- Sound pressure level (LpA): 78 dB(A)
- K-value noise: 3 dB(A)
- Vibration: 2.5 m/s²
- K-value vibration: 1.5 m/s²
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Hersteller: Makita
• Gewicht: 2300 g
• Antrieb: Akku
• Spannung: 18 V
• Akku Kapazität: 5.0 Ah
• K-Wert Vibration: 1.5 m/s²
• Länge: 304 mm
• Breite: 93 mm
• Höhe: 318 mm
• Schalldruckpegel: 78 dB
• Max. Vibration: 2.5 m/s²
• K-Wert Geräusch: 3 dB
• Schallleistungspegel: 85 dB
