Description

Package contents:

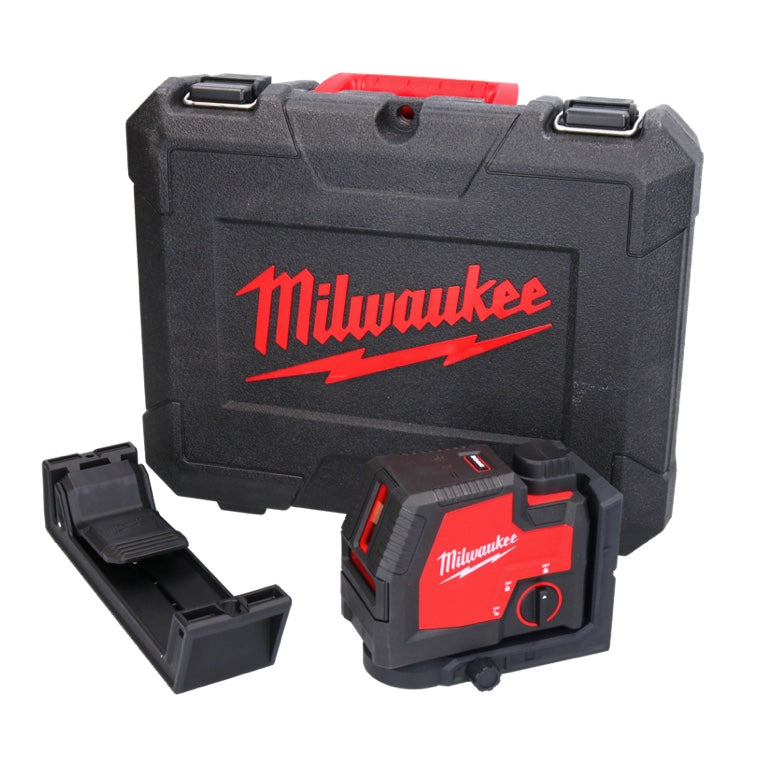

- 1x Milwaukee L4 CLL-0 Green Cross Line Laser
- 1x Battery Milwaukee L4 B3 3.0 Ah 4V
- 1x USB cable
- 1x Track clip
- 1x Holder

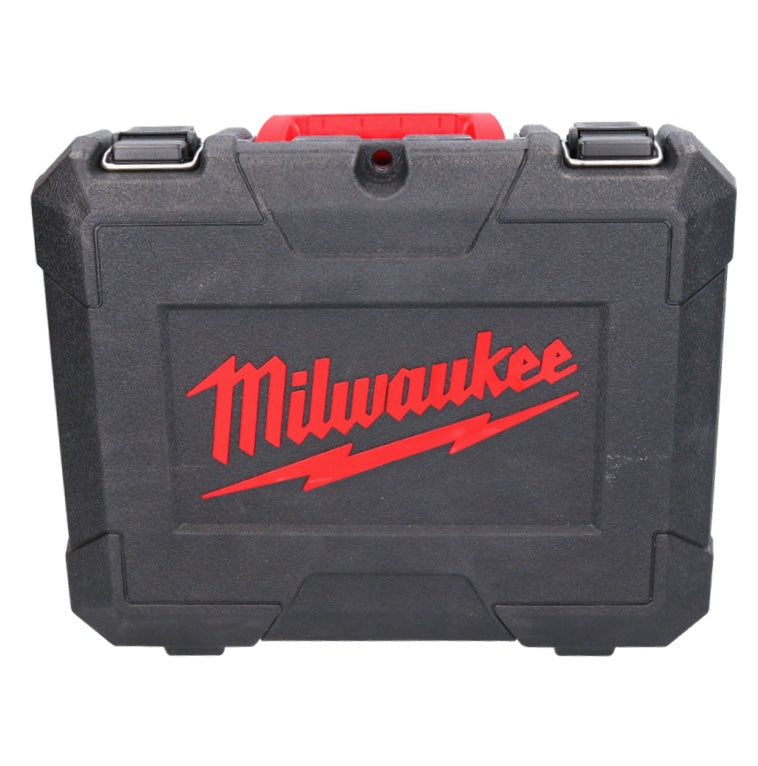

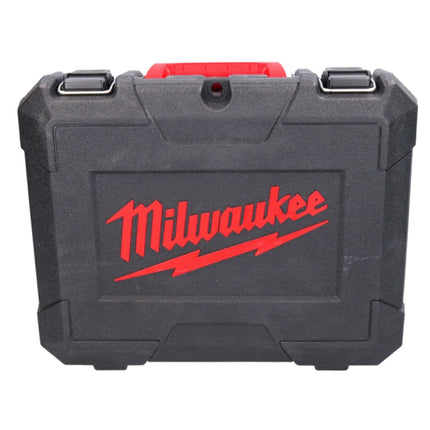

- 1x Case

Product description:

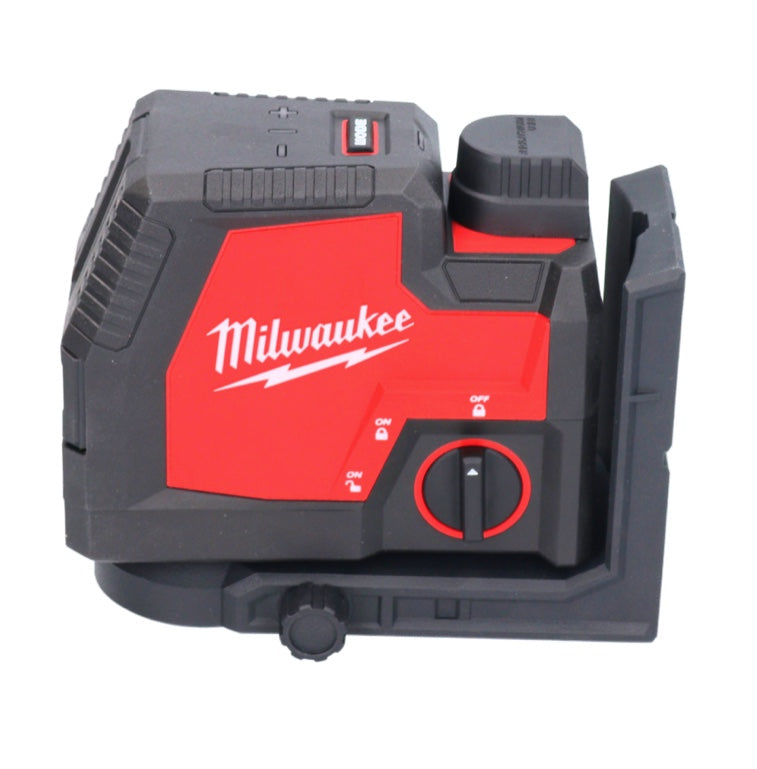

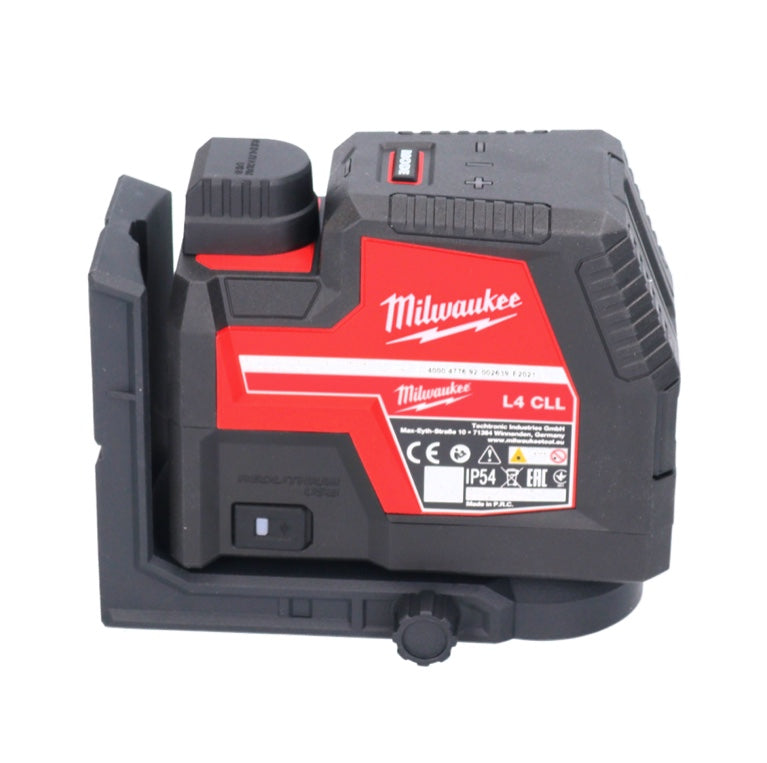

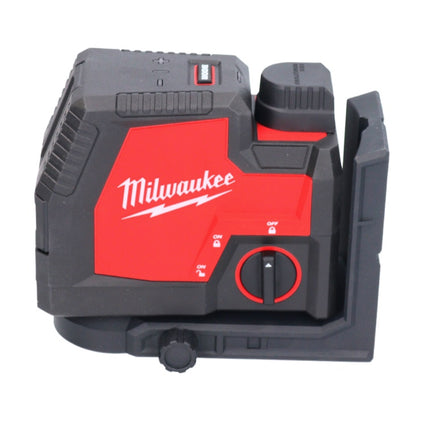

The L4 CLL cross line laser from Milwaukee projects accurate and self-levelling cross lines for precise horizontal and vertical alignment on construction sites and interior work. The device features a 3-mode pendulum system: a Manual Mode which allows the device to be used at any angle; a Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and a Pendulum Lock Mode to protect components during transport. This L4 CLL is also equipped with high intensity green beams which provide a 30 m working range. This can also be switched between vertical, horizontal or cross line. Its detector (not included in the scope of delivery), garantees an extented range of applicability to 50 or 100 metres. In addition, it is fitted with a replaceable battery with a maximum runtime of eight hours. This battery can be charged directly in the device via a micro USB cable. Its fuel gauge on the top and side allows for fast checking of the battery charge. The magnetic bracket of this line laser from Milwaukee features a 360° rotation with a built-in micro control knob for quicker point-to-point alignment. The bracket magnets in the mount also hold the laser to drywall profiles. Furthermore, it can be mounted on a tripod thread and hang hole which allow attachment to steel stud or wooden stud and its suspension hole also allows it to be hung from bolts or screws. Milwaukee is a US tool manufacturer of trade-specific system tools and is thus one of the most successful worldwide.

Technical specifications:

Manufacturer: Milwaukee
Manufacturer's designation: L4 CLL-301C
Manufacturer Number: 4933478243
Voltage: 4V
Laser line colour: Green
Laser projection: vertical, horizontal, cross
Laser classification: Class 2
Working range visible: 30 m
Working range detector: 50 / 100 m
Accuracy: 0.3 mm / m
Weight with battery (EPTA): 0.90 kg
IP protection class: IP 54
Max. Running time with L4 B3 battery: 8 h
Self-levelling range: 4.0 °

Specifications

• Hersteller: Milwaukee
• Gewicht: 9000 g
• Antrieb: Akku
• Spannung: 4 V
• Akku Kapazität: 3.0 Ah
• Länge: 313 mm
• Breite: 123 mm
• Höhe: 376 mm
• Gehäuse-Schutzklasse: IP 54
• Genauigkeit: 0.3 cm / 100m
• Laserklasse: 2
• Laserlinienfarbe: Grün
• Datenübertragung: USB
• Nivelliergenauigkeit: 4
